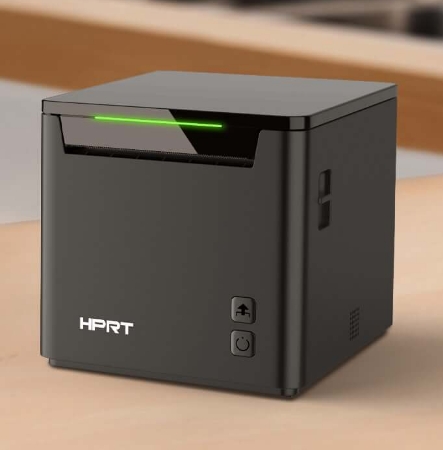

Product model: TP80NB-L


Printing parameters: Printing mode thermal sensitive


Resolution: 203 DPI/180 DPI


Effective print width: 72 mm(default)/48 mm


Print speed: Max.160 mm/s


Programming language: ESC/POS (page mode not supported)


Printing medium: Medium type thermal continuous paper


Medium width: Max.80 mm


Paper bin capacity: Max. 80mm


Paper direction: forward paper


Bar code One-dimensional code: UPC-A UPC-E EAN-8 EAN-13 CODE39 ITF CODABAR CODE128 CODE93

QR Code: QR CodePDF417


Characters Chinese/Traditional: (24×24 points)


Alphanumericyle="white-space:pre"> Font A 12×24Font B 9×17


Chinese character Library English character library (minor languages) Korean character library Japanese character library


Communication interface: Standard 1*USB Type-B


Options: Wi-Fi Bluetooth Ethernet cash box


Buzzer: Type Built-in buzzer external sound and light alarm (optional)


Sensor: Standard overtemperature detection lack of paper detection open cover detection knife detection


Hardware configuration: Memory 96 KB


Flash memory: 2 MB


Electrical parameters: Input AC 100 ~ 240 V 50/60 Hz


Output DC 24 V 1.5 A


Software driver: Windows 7/8/10 Windows Server 2008/2012/2016


Linux Javapos OPOS MacOS


Setting tool: Windows 7/8/10 Windows Server 2008/2012/2016


Reliability: Hot write first 100 KM


Cutter life: 1 million


Environment parameters: Operate 0°C to 45°C relative humidity 25% to 85% no condensation


Storage/Transportation: -20 °C~60°C relative humidity 5%~95% no condensation


Physical size:

145 mm x123.5 mm x121.6 mm (L x W x H)


authentication

CCC CE FCC
